Lifting System

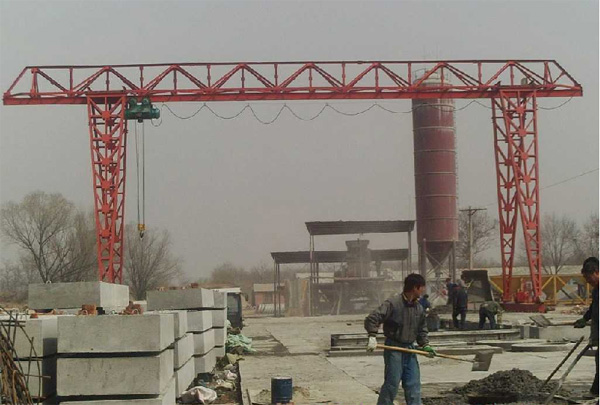

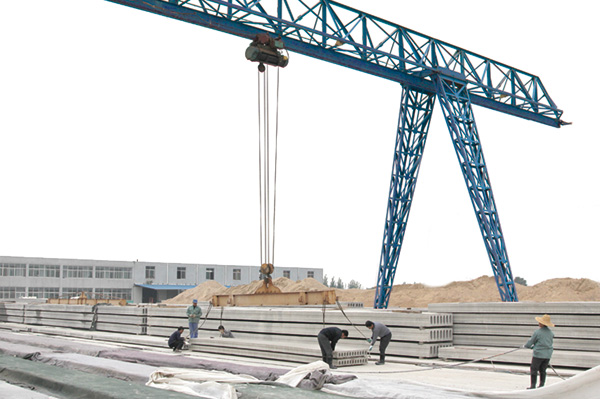

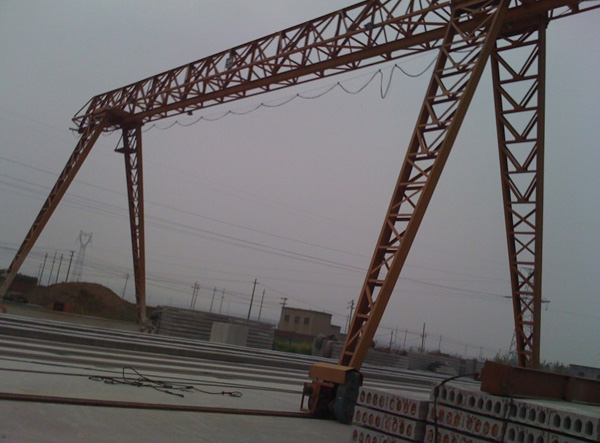

Gantry cranes is helpful to lift Hollow core slabs etc. by a hoist, which is fitted on a hoist trolley. It also helps in Shifting, Washing & Cleaning operation of Extrusion Machine & Circular saw cutting machine. The gantry crane move horizontally with wheels at the foot, which rolls on a pair of Rails fitted on the ground.

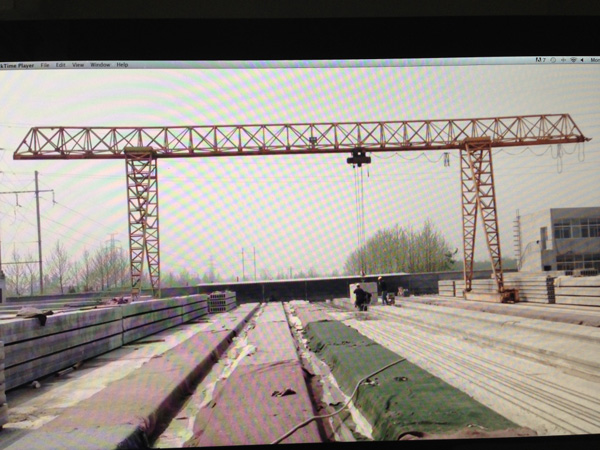

The Gantry crane traverse parallel to the casting beds, so that it can move the total length of the casting beds, while the hoist can be moved To and Fro across the width of the casting beds. All the Three movement is motorized for ease & convince.
The Span of Gantry crane for Load bearing Hollow core plant having 10 Lane Casting Bed is 20 meters, but it is extended by 6 meters each on the Left & Right side enabling to store Cut Hollow core slabs for further curing before dispatch, hence has more advantage compared to Overhead cranes.
By Extending the Span of Gantry crane it really saves lot of Time & money spent on Handling & re-handling of Hollow core slab as compared to European Plant & Machinery.
We recommend 2 Gantry crane for bigger Plant for better efficiency & productivity.

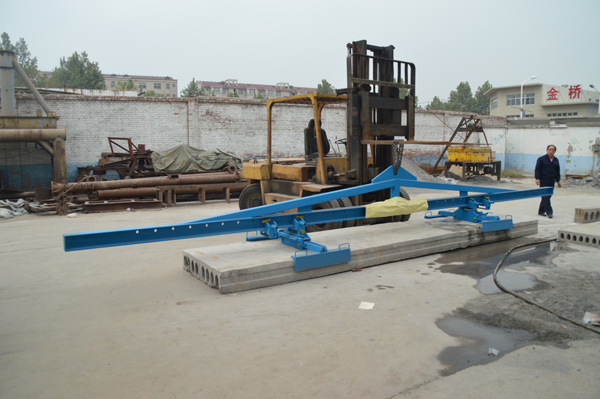

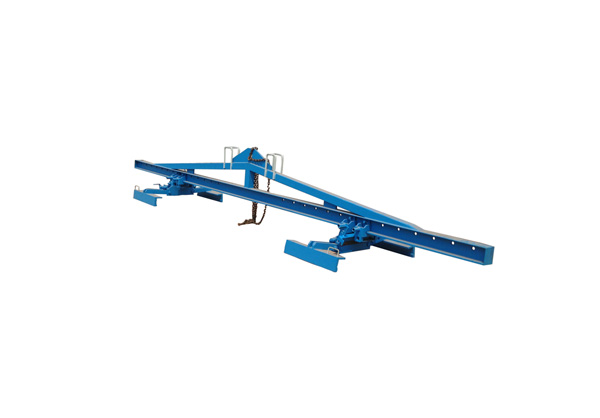

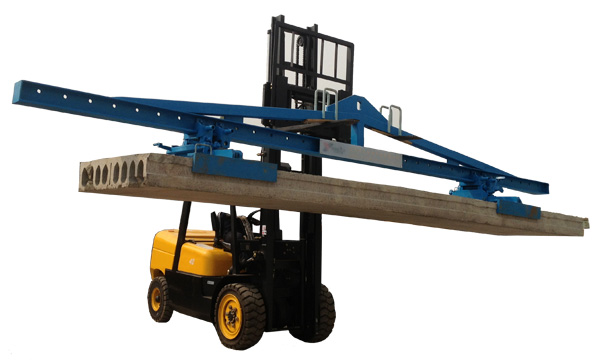

Lifting beam with Clamps is used for stripping out and stacking of pre-stressed hollow core slabs manufactured on casting beds with the help of Gantry crane.
Lifting beam with Clamps has feature for quick engagement and release design for smooth continuous workflow.
Lifting beam with Clamps is a designed with very high load ratings & bearing highest safety during handling of de-molding, lifting, transporting, stacking, loading to erection with low labor and timesaving’s. Safety chain is must to be engaged while using it. A major advantage of the clamps is that they are designed for the clamp faces to match the cross section.
We offer a complete range of lifting beams with clamps to operate different version of hollow core slab varying in design, depths, weight and lengths. The clamps are flexible and adjustable to handle various slab thickness with different spans.
Loading capacities varies from 4 to 14 Tonnes.
