Pallets

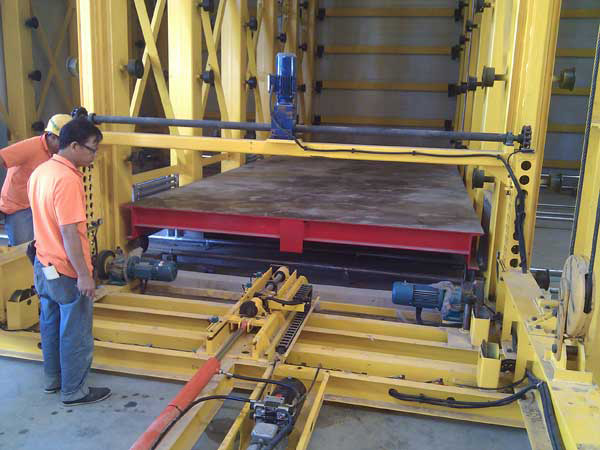

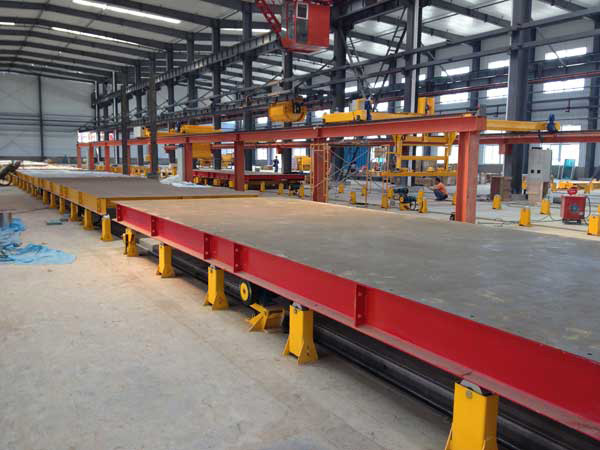

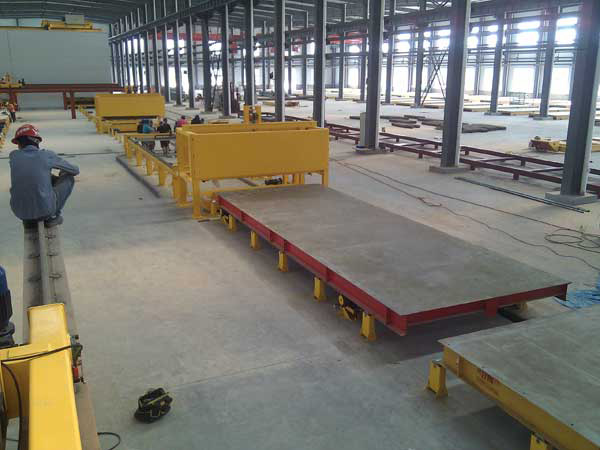

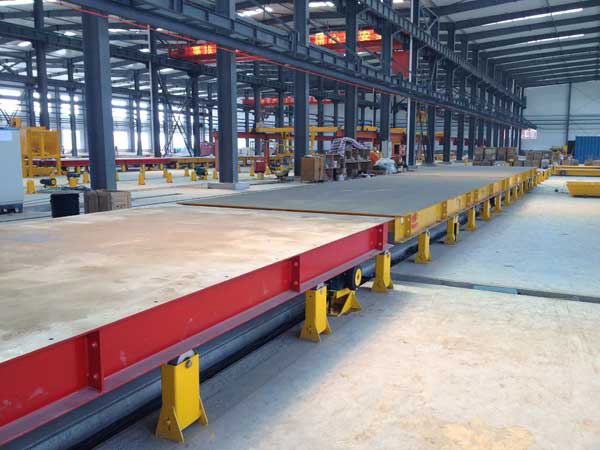

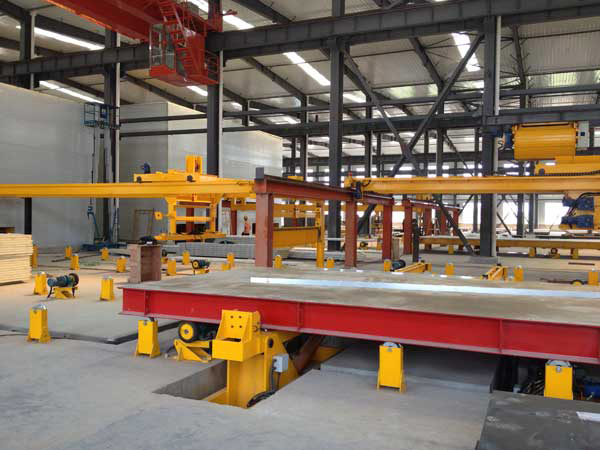

The production pallet circulates round the circulation systems / carrousel from the cleaning station to the de-moulding station where the finished product is removed. It is transported from workstation to workstation, passing through the various production stages with large variety of precast concrete elements.

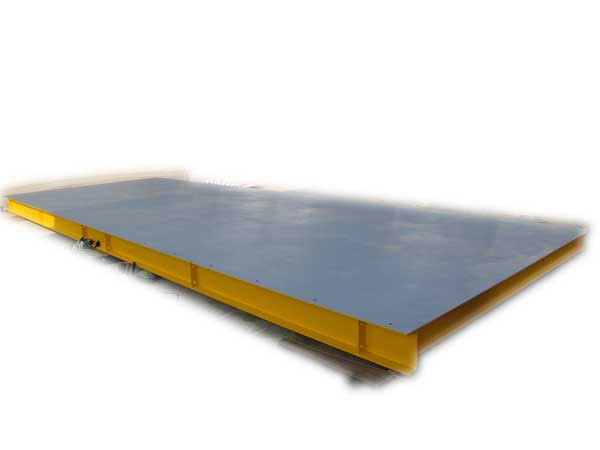

Pallet is consisting of steel frame with weight-optimized design, anti-collision device, face-board & are painted shake proof welded steel structure with a polished smooth mould surface & Top single plate made from M.S. Specially rolled 8 mm thick plate duly polished, scale-free, Ground & oiled. High quality pallets stand out due to their absolutely Glossy & Even surface (flatness error ≤ 1.5mm) i.e. Having Surface accuracy: +/- 1.5 mm in 3 meter measuring length. 40 to 60 Pallets are used normally in good set-up of pallet circulating plant.

Average Maximum Size of pallet is 12 meter x 4 meters with 8 mm top quality single plate. Pallet load: 3100 to 4000 N/m2. Surface roughness: 3.7 μm, Optional IPE 140 mm. Maximum payload is about 17,400 Kgs. & Maximum weight of pallet is 5,850 Kgs for above size.
