INSTALLATION OF PANELS.

(REFER INSTALLATION DRAWING)

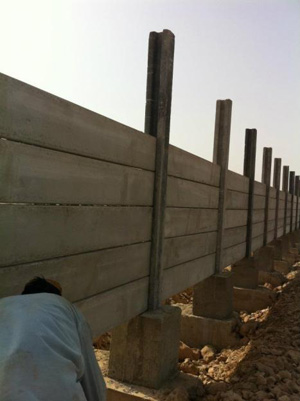

1. Light-duty Boundary wall, which are easy to lift by 2 persons, installed at site as per clients requirement. Size 50 mm x 300 mm Width with 6 feet or 7 feet length.
2. Heavy-duty Boundary wall which are handled & install by Cranes. Sizes are 50mm x 500mm width, 65 x 500, 80 x 500, 90 x 600 & 120 x 600. Length can be cut as per requirement.
3. We also supply Portable Earth Drilling machine for fast & effortless installation of post

Light-duty boundary wall panel / Plank: Length 7 Feet X Height 1 Feet X Width 2 Inch (We use PCC steel with 3 mm and per sleet 4 pieces, with stressing system)

‘H’ Column: ‘H’ column Size is 6x6 inches (150mm x 150mm) Length of panel depends on customer’s requirement, We use PCC still with 3 mm. and per beams 6 pieces, with stressing system

•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
