Costing of Making Toilet Unit / Toilet Blocks - Swachh Bharat Abhiyan
11,11,00,000 Toilet Block to be made & install under Swachh Bharat Abhiyan.
Vision of Shri Narendra Modi Hon’able Prime Minister.
Govt. to spend 2 lakhs crore rupees for making this Toilet blocks, All India in 4,400 town in 5 years

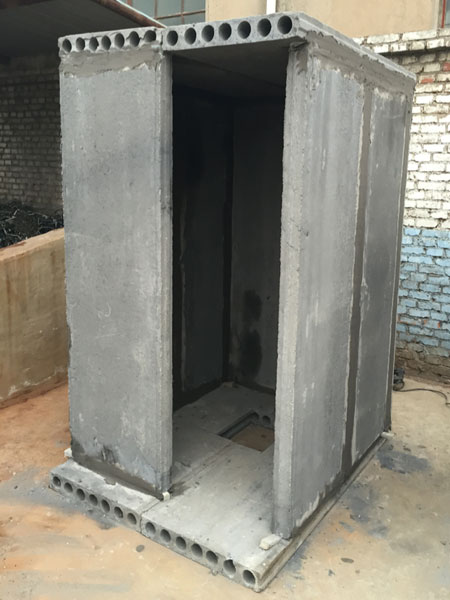

Toilet Block made Precast Panels: - Are manufactured by Worlds Latest Concrete Extrusion Technology. This panels are Pre-stressed, made from M25 Concrete, Hollow in structure & are duly Reinforced with 3mm carbon steel wires: - Most Economical, Strong & durable, Versatile, Reliable, Modular, Fast & Simple to Install, Easy to Transport for above project compared to any other material.
Strategic Advantages of Precast Panels over conventional construction method of Toilets & other material used are:-
- The Precast panels are made of M40 grade of concrete with Reinforcement – Strong & Durable.
- Good Moisture Resistance, Excellent Resistance in wet condition.
- Simple & Easy to handle, Quick to Install with panels, workability like wood.
- Panels produced by advance concrete extrusion technology, Saves Time, hence no Quantity issue.
- Minimize the need & use of skilled labor at production & installation stage (by just 3 workers).
- Panels being hollow, saves material up to 40% compared to traditional in-situ panel of the same size.
- Cylindrical “cores” of panel work as natural conduits for plumbing, electrical wiring - saves cost.
- Superb factory finish quality - Dry panel, No curing required at site.
- The panels have good finish inside and outside. Ready-to-paint.
- High compressive strength (24 N / mm2). Durability against wear and tear.
- Being light, saves in Transportation cost & no need of crane at installation site.
- Excellent Thermal Insulation, sound insulation, Fire resistance.
- Less mess at site, better site management, Green building material, Ideal Panel module size.
- Panels made from Concrete Mix with flat & even surface, Savings in Plastering and Finishing.
- 90% of Toilet block build from Pre-stressed precast concrete.
Installed Structure Cost of Toilet block from Precast panels: -
For more details contact us
--> -->
Please note
1). If the above Toilet block is made from Panel of size 50 mm Thick x 2 ft Width x length to cut from long slab. Panel weight is 9.5 kgs /Sq. ft. And cost of panel per Sq ft is Rs. 22/ - & Toilet block cost will be approx is Rs. 1000/- less than above. i.e. Rs.7200/-
2). If the above Toilet block is made from Panel of size 90 mm Thick x 2 ft Width x length to cut from long slab. Panel weight is 12.9 kgs /Sq. ft. And cost of panel per Sq. ft.is Rs. 33/ - & Toilet block cost will increase by Rs. 800/- than above. Cost is i.e Rs.9000/-
Investment: - Manufacturing of Concrete Hollow Core Precast Panels duly Reinforced with carbon steel wires, requires Investment of Rs. 45 Lakhs in plant & Imported machinery. (Except for cost of land). Land required about 1-Acre, having length to width ratio of 4:1. (i.e. 105 meters to 9 meters) Power 35 KW. Machinery: - Imported from China of Approx. Rs. 32 Lakhs (Approx. Landed price Mumbai with Import duty, only if complete set is purchased. The list of m/c are:- Wall Panel Extrusion M/c Size - 75mm thick x 600mm x 2 – 1 set & other Supporting m/c: - Concrete Mixer on stand with platform & Batching & Dosing m/c + Stressing m/c – 1 set + Battery Operated Mini Dumper for transport of concrete mix delivery – 2 Nos. + Manual Feeding Cart for transport of concrete mix delivery (stand by) – 1 No. + Slab Cutting m/c for Panels – 1 Nos. + Wire Coil dispensing stand – 3 Nos. + Jib type Swivel crane - 1 nos. + Lifting Accessories.
Balance 13 lakhs is Cost towards Land Development & Plant Set-up i.e. Civil Work for making well-levelled long line Concrete Platform + Civil cost for Abutment + Steel abutment plates & Steel Flats to be grouted on Floor for Guiding Extrusion M/c plus consultancy charges to be paid to Ace Associate.
Benefits of Investment for setting-up plant
1). Plant is set-up in Open to sky, just in 3 to 4 weeks for immediate production & Very Low on Investment. The Slabs are extruded by extrusion m/c on well-levelled long line Concrete Platform & are Naturally Cured under Hot & Humid climate, cut to size & lifted & stored / used for the required application.
2). While expansion on business the Supporting machinery & Concrete platform prepared for above Panels can also be used to Extrude other concrete products like Supporting ‘H’ columns for making Boundary wall, Multi-extruded elements like Fencing post, Sq. poles, Beam, columns, Lintel, Purlin, ‘T’ Beam etc.
(Also given details for it’s Supporting ‘H’ column / Beam / fencing Pillar to make Boundary wall)
1a). Light weight Panels used for Boundary Wall or for making Toilet block. (By Extrusion M/c for panel. Size 50 x 300mm x 2 having 20 mm Dia. 5 cores, with 4 nos. of 3mm Dia. reinforcement.) Panels from this m/c also has Multiple uses for making Toilet Blocks, Sheds, Garden curbing etc. Cost of 1 no of wire per Running feet is Re.1/-. Weight of panel being hollow is 9.5kgs / Sq ft. Approx. Cost of panel Rs. 22 / Sq feet.
1b). Supporting ‘H’ column (Beam / fencing Pillar) for fitting above panel to make Boundary Wall. (By Extrusion M/c for column. Size 150 x150mm x 2 having 25 mm Dia. core, with 8 nos. of 3mm Dia. reinforcement.) Cost of 1 no of wire per Running feet is Re. 1/-. Weight of Column is 13.5 kgs. / Running ft. Approx. Cost of “H” column is Rs. 26 / Running ft.
2a). Medium weight Panels used for Toilet blocks or for making Boundary Walls. (By Extrusion M/c for panel. Size 75 x 600mm x 2 having 42 mm Dia. 8 cores, with 8 nos. of 3mm Dia. reinforcement.) Panels from this m/c also have multiple uses for making Partition Walls, Light load slabs for affordable housing etc. Cost of wire per Running feet is Re.1/-. Weight of panel being hollow is 12.5 kgs / Sq. ft. Approx. Cost of panel is Rs. 28 / Sq. feet.
2b). Supporting ‘H’ column (Beam / fencing Pillar) for fitting above panel to make Boundary Wall. (By Extrusion M/c for column Size 180 x 220mm x 2 having 30 mm Dia. core, with 8 nos. of 3mm Dia. reinforcement.) Cost of wire per Running feet is Re. 1/- Weight 24 kgs. / Running ft. Approx. Cost of “H” column is Rs. 55 / Running ft.
3a). Heavy weight Panels are used for making Partition Walls / Making Toilet blocks or Heavy duty Boundary Wall. (By Extrusion M/c for panel. Size 90 x 600mm x 1 having 58 mm Dia. 7 cores, with 8 nos. of 3mm Dia. reinforcement.) Panels from this m/c also have multiple uses for making Partition Walls, Light load slabs for affordable housing etc. Cost of wire per Running feet is Re. 1/-. Weight of panel being hollow is 12.9 kgs. / Sq. ft. Approx. Cost of panel is Rs. 33 / Sq. feet.
3b). Supporting ‘H’ column (Beam / fencing Pillar) for fitting above panel to make Boundary Wall. (By Extrusion M/c for column Size 180 x 280mm x 2 having 35 mm Dia. core, with 8 nos. of 3mm Dia. reinforcement.) Cost of wire per Running feet is Re. 1/- Weight 31 kgs. / Running ft. Approx. Cost of “H” column is Rs. 65 / Running ft.
Medium & Heavy duty Concrete Panels with proper reinforcement & topping coat of concrete can be used for making Roof & floor for affordable housing / Mezzanine floor / Making Partition wall for Hotels, Bathrooms, Kitchens, Bedrooms, Offices etc. plus Factory walls, Fencing wall, Heavy-duty Boundary wall etc.
While expansion on business the Concrete platform / casting beds prepared for above Panels can also be used to produce other concrete products like Supporting ‘H’ columns, Fencing post, Sq. poles, Boundary Wall Panels, Beam, Lintel, Purlin, ‘T’ Beam etc.
